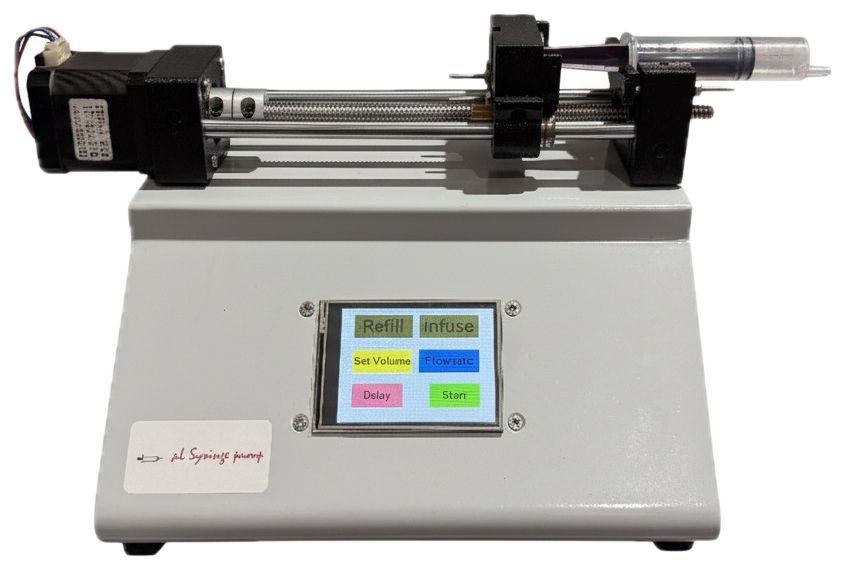

User can manually move the syringe pump (forward or backward) using the top 2 buttons in the touchscreen HMI.
Highly accurate and precise (+/-1%). The results are reproduceable quite consistently
Ready to use with 10ml syringe volumes. For other syringe volumes (100?L / 1ml / 5ml / 20ml) please mention at the time of ordering.
Touch screen display shows the process parameters clearly.
All parameters such as flow rate, target volume, delay can be set by the user according to their requirements.
Easy control of the equipment via the touch screen interface. Users can set parameters according to their applications.
Flow rate is adjusted in µL/min
Delay parameter can be adjusted by user for safety and to provide preparation time
Compact and portable.
Stop option - User can stop the pump anytime they want with a click of a button.
PC independent operation.
Developed and manufactured in INDIA by our team of engineers
KLOCKE NANOTECHNIK GMBH, GERMANY
SEM-TEM-FIB Workbench
Scanning probe microscopy
Universal Test bench
Portable test bench
Micro production system
3D – Nanofinger
Nanorobotic components : Nanomotor , NMT table, Microgrippers,controller, etc.
MICROLITRE SYRINGE PUMP
Suitable for all non-human applications including microfluidics, microdialysis, cell injection, pre-clinical animal dosing and Electrospinning
Both Infusion and withdraw modes are available
Minimum flow rate : 1 micro Litre/sec
Maximum flow rate: 1mL/sec.
Syringe volume : 1mL,2.5mL, 5mL, 10mL & 20mL
Users can switch easily between the syringe volumes in just few clicks of a button
LCD display shows the values clearly
All parameters such as flow rate, target volume, time can be set by the user according to their requirements and the syringes used
Compact and portable for sterile operations
Units can be set as micro Litre/min or mL/min or micro Litre/sec or mL/sec by the user
Easy control of the equipment with a front control panel with 4 push buttons using which the users can set parameters according to their applications with ease
Highly accurate (+/- 1%) and precise. The results are reproduceable quite consistently
User can stop the pump anytime with a click of a button
Buzzer sound alerts occur when operations are complete or are suddenly stopped
Material of construction: Steel, PLA (Upon request, available in stainless steel)
Power: 240V, 50Hz , Weight: 2.5kg , Dimensions: 22cm(l) x 16.5cm(b) x 9cm(h)
Developed and manufactured in INDIA by our team of engineers
